USWF-PP20-1025

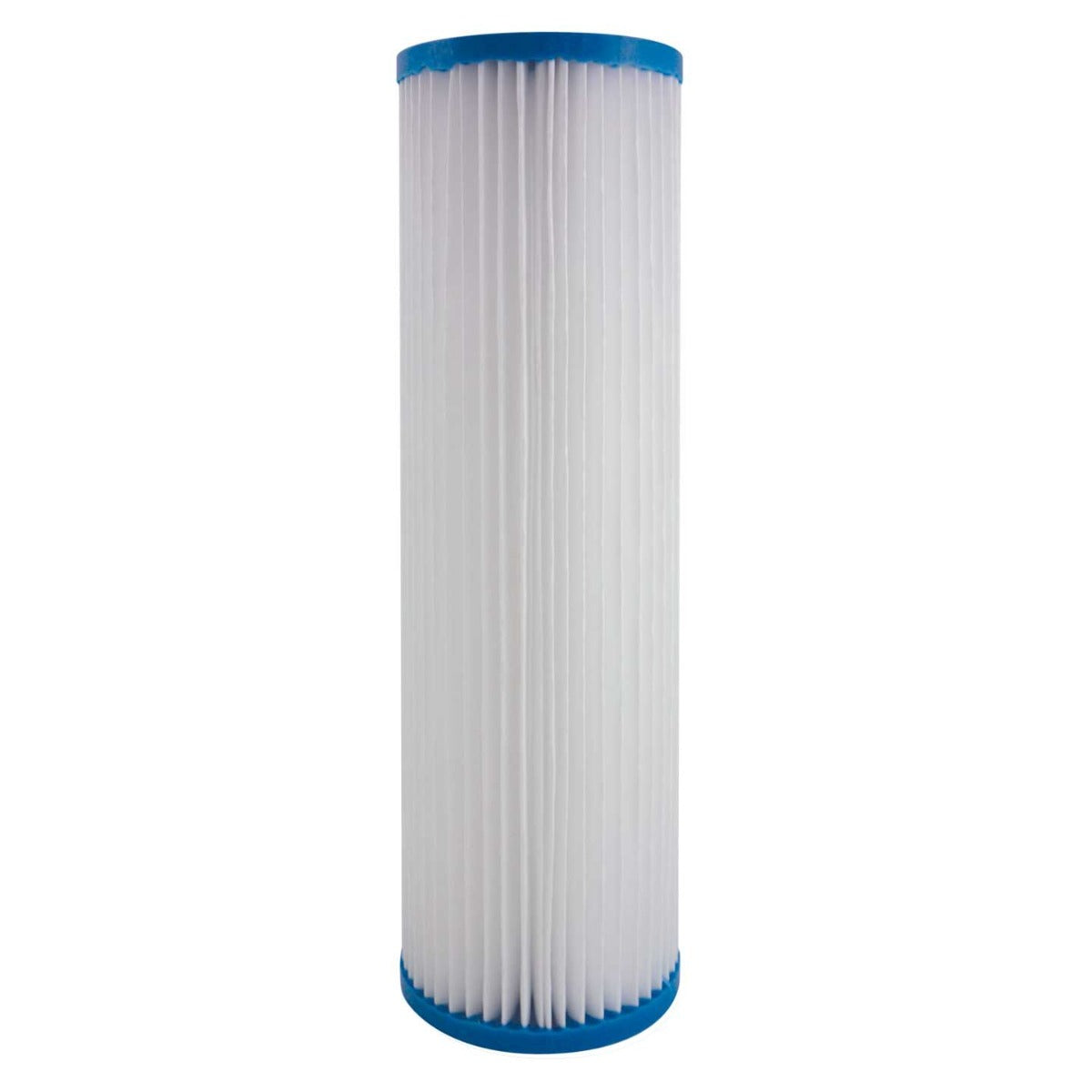

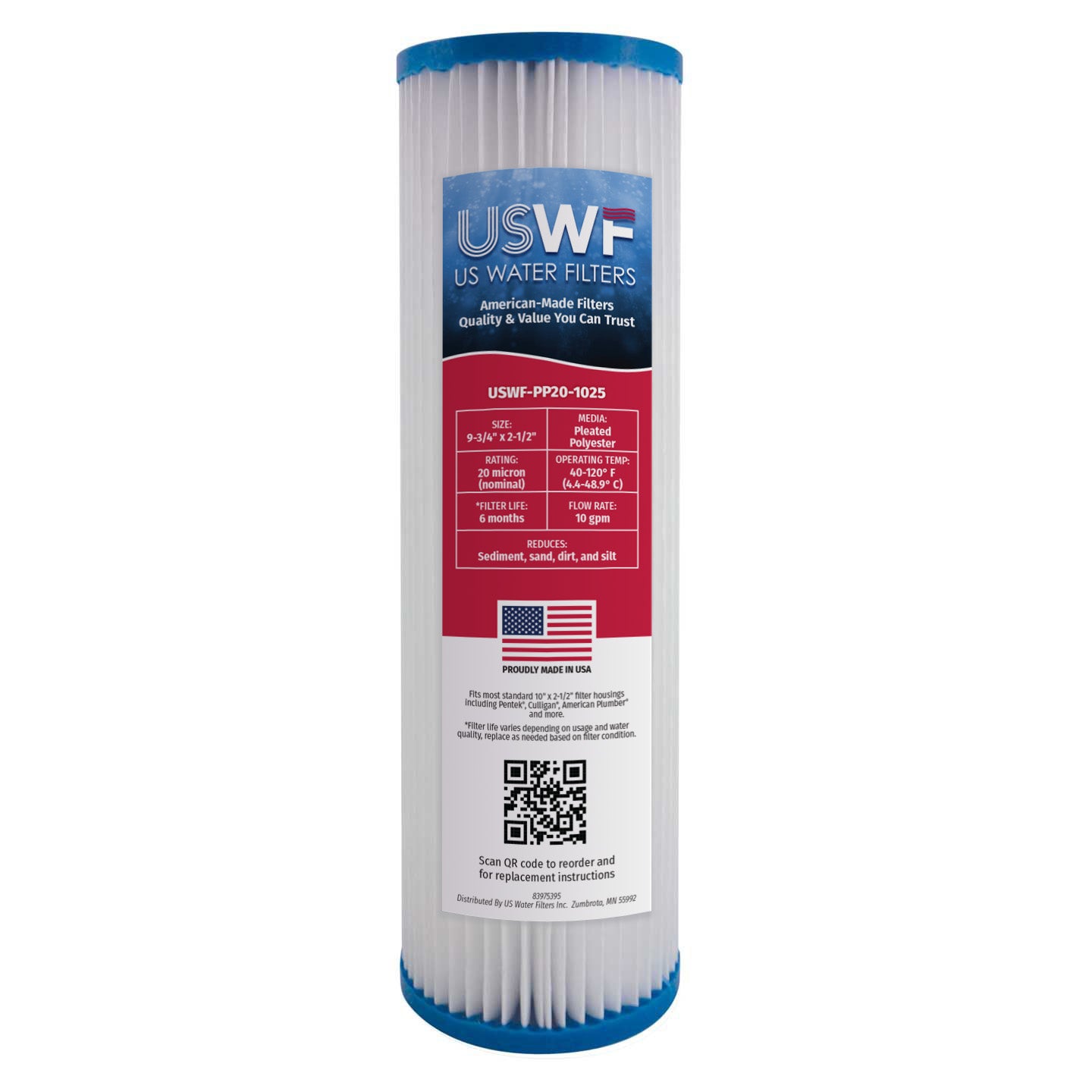

USWF 20 Micron 10"x2.5" Pleated Polyester Sediment Filter

.price-ui--loading { display: block !important; opacity: 1 !important; }

$6.32 - $133.48

Price Per Item

2 PACK	$6.13
4 PACK	$5.94
6 PACK	$5.75
24 PACK	$5.56

Choose a Pack Size:

Single

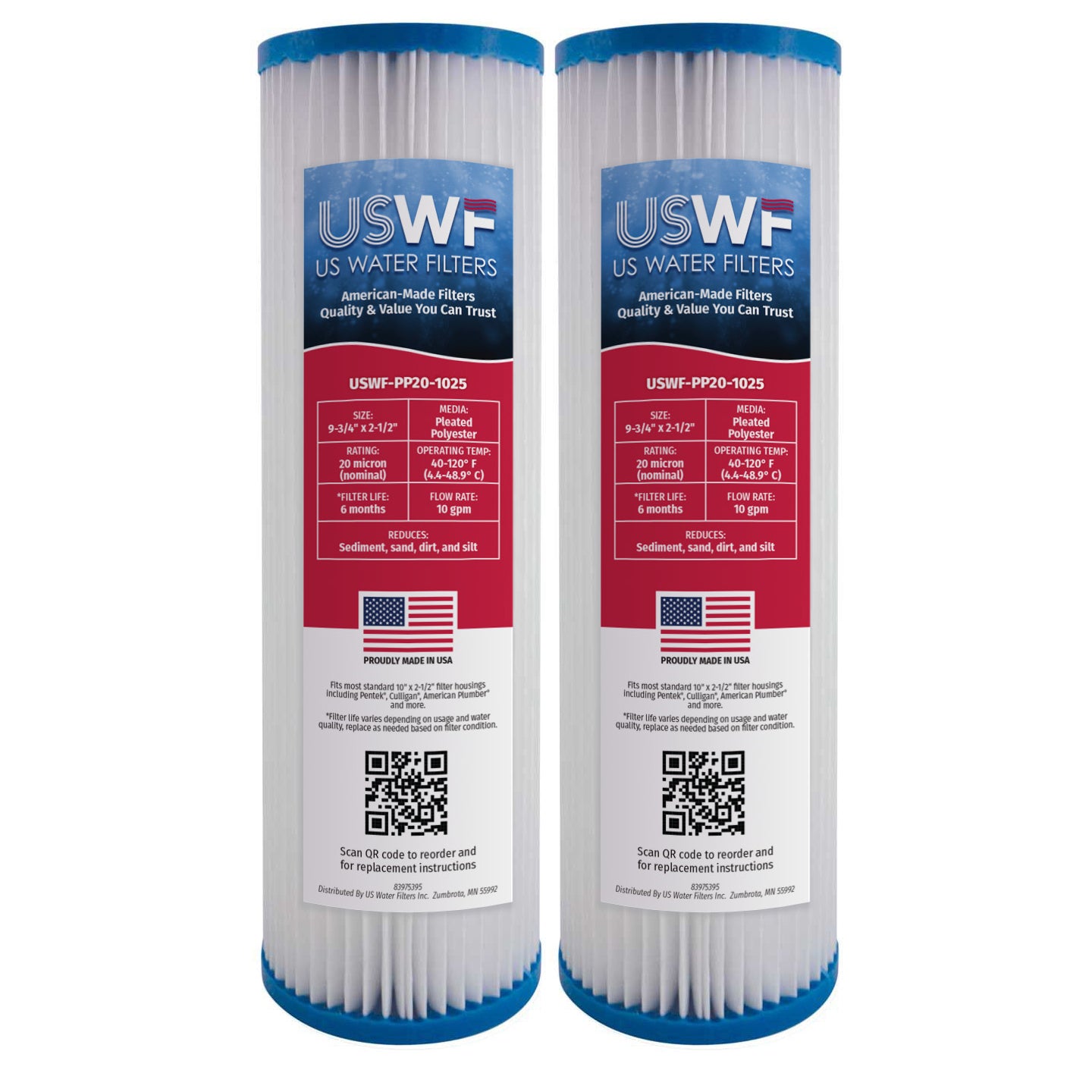

2 PACK

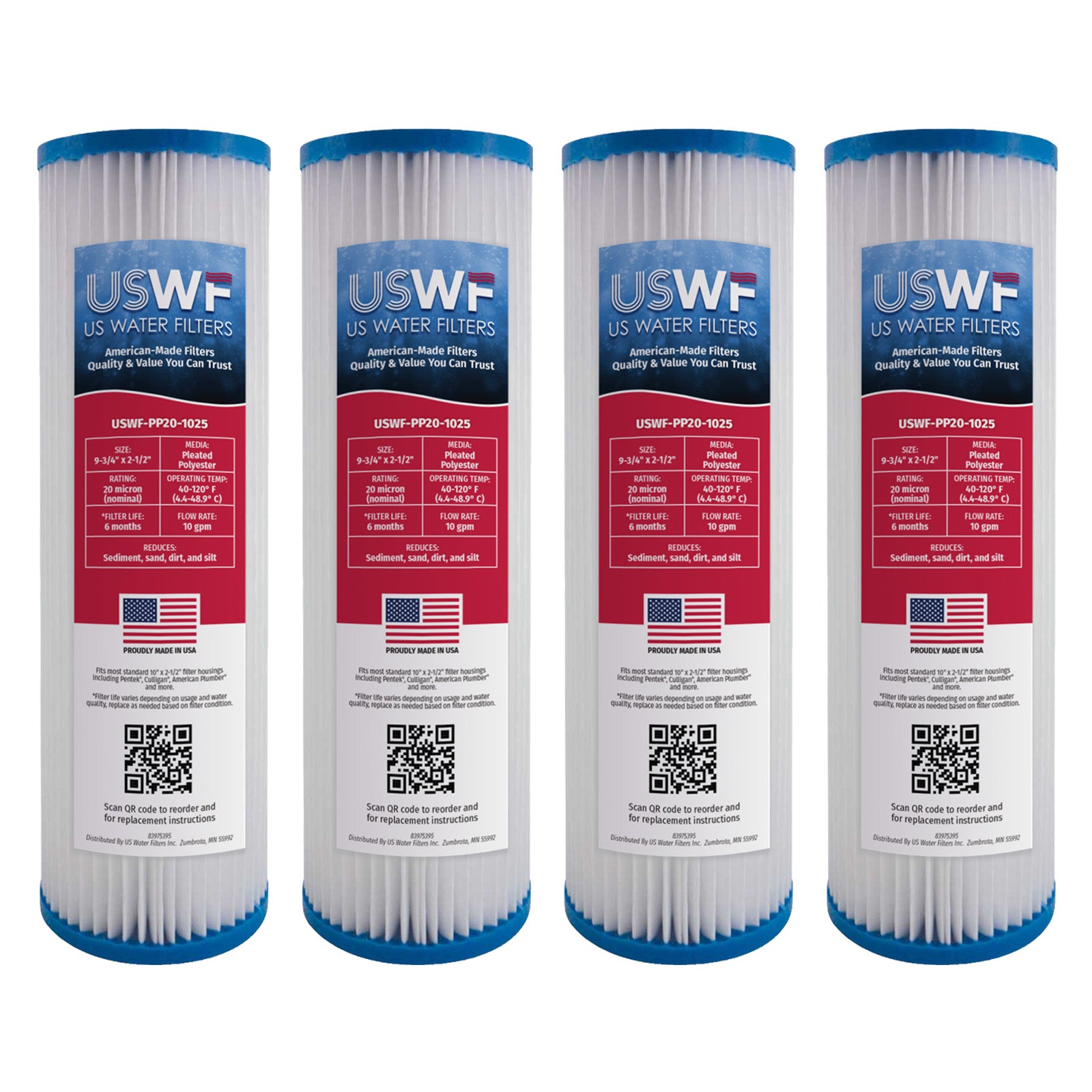

4 PACK

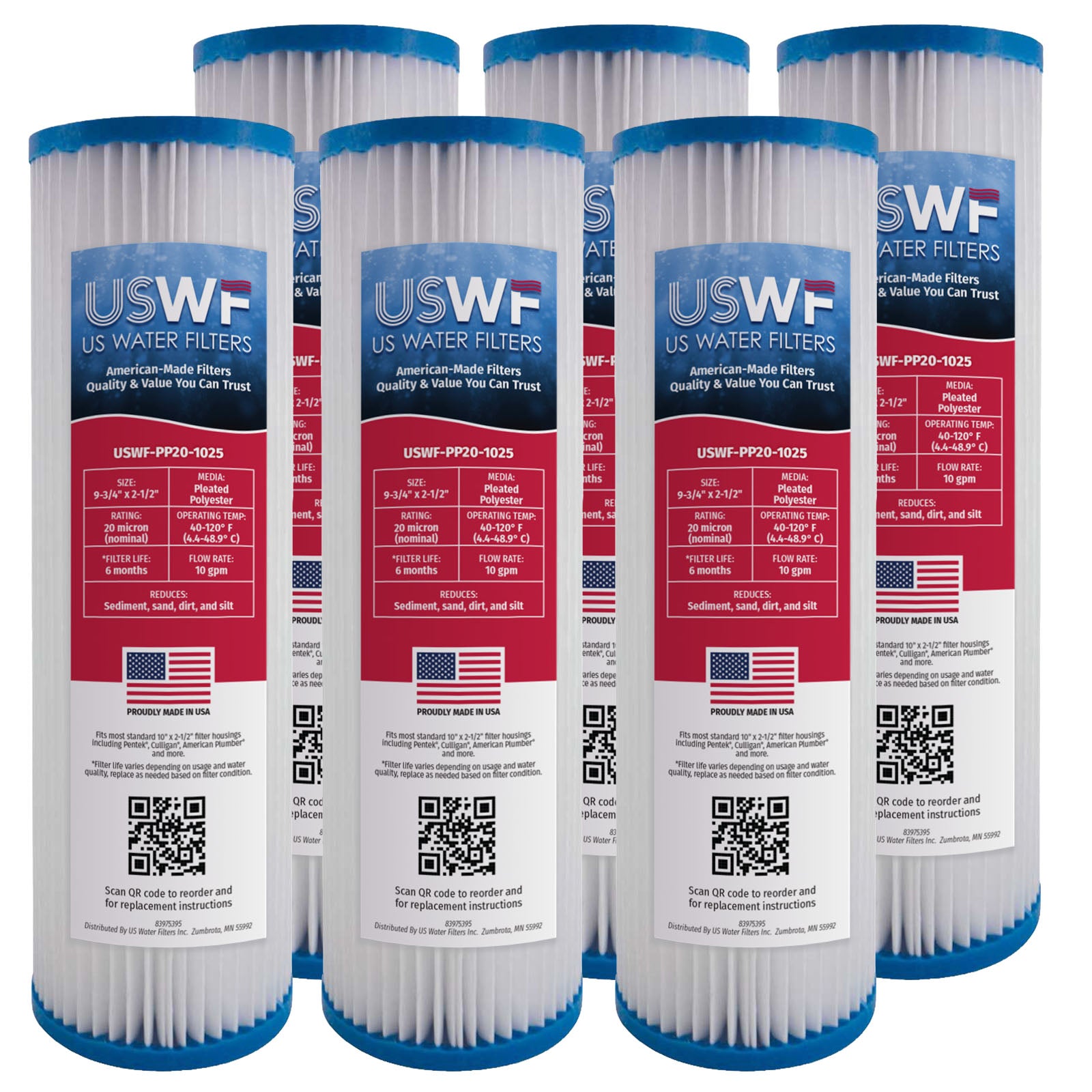

6 PACK

24 PACK

Proudly manufactured in America supporting American workers and ensuring a high quality product.
Pleated filter's high surface area provides the best flow rate and lowest initial pressure drop of any sediment filter type.
Constructed with FDA Title 21 compliant polyester fabric for use on untreated water supplies.
Fits most standard 10" x 2 1/2" filter housings including Pentek, Culligan, American Plumber and more.

format_list_bulleted Features & Specs

Package Qty: 1

Manufacturer's Id: PP20-1025

Actual Size (in): 9 3/4 inches (length) x 2 1/2 inches (outside diameter)

Primary Filter Media: Pleated Polyester

Operating Temperature (°F): 40 - 120

Brand: USWF

Advertised Size: 10 x 2-1/2

Length (in): 9.75 in

Outside Diameter (in): 2.5 in

Maximum Temperature (f): 120

Media Type: Sediment Filter

Country of Origin: United States

Micron Rating Nominal: 20

Flow Rate (gpm): 10.0

description Instructions

Turn off water supply and release pressure in the filter housing. (Press red pressure-relief button on housing if present.)
Unscrew filter housing sump. (Use filter wrench if nessecary.)
Discard used filter cartridge. Remove the sump o-ring, wipe clean and set aside.
Wash housing with dish soap and warm water using a nonabrasive sponge or cloth. Rinse thoroughly
If unpleasent odor is present disinfect filter housing. Fill 1/3 with water. Add about 1 tablespoon of bleach and scrub to disinfect. Rinse thoroughly
Lubricate o-ring with clean silicone grease and place back onto the sump housing. (Check for cracks or imperfections on the o-ring while lubicating, and replace o-ring if damaged.)
Insert new filter cartridge ensuring that it is seated properly in the sump housing.
Screw the sump housing back onto the cap and hand-tighten. Do not use the filter wrench to prevent over tightening.
Turn on the water supply and check for leaks before leaving the installation.
Flush out any air from the filter housing. (Using the red pressure-relief button, or a nearby down-stream faucet.)

warning_amber Contaminants Reduced

Sediment

Coarse Sand

filter_alt Filter Life

Filter Life (months): 6 months

warning

Prop65 warning applies to products that contain carbon media. Click here for more details

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

compare_arrows

help Product Details

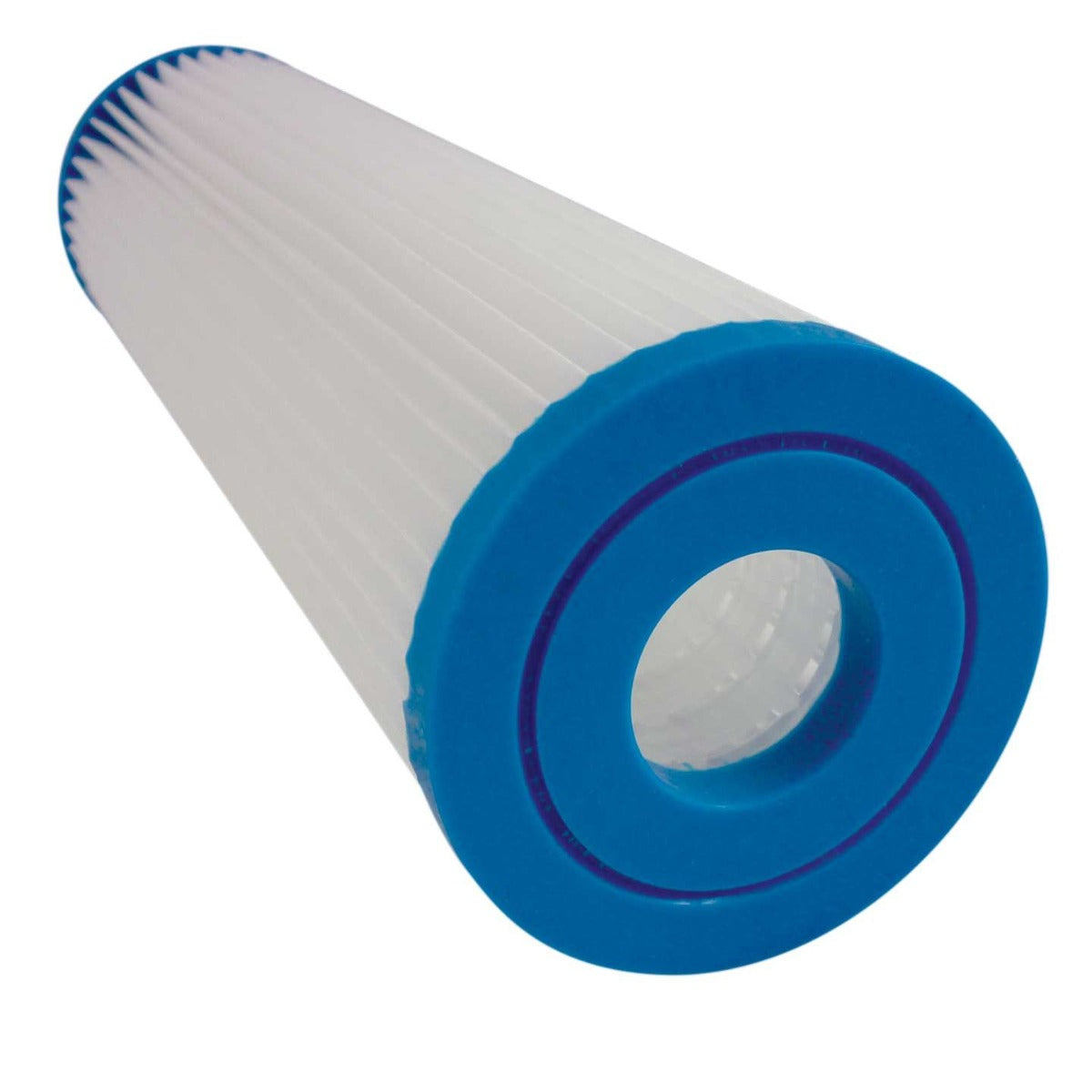

USWF-PP20-1025 is a 20 micron 10"x2.5" pleated polyester sediment replacement filter that is proudly manufactured in the USA. It is made from FDA Title 21 compliant polyester fabric pleated around a polypropylene core to provide a high quality filter independently tested to NSF / ANSI standards 42, 61, and 372.
Pleated filters offer the lowest pressure drop and highest flow rate of all sediment filter types by providing as much filtration surface as possible to maximize water flow. However because pleated filters offer no filtration gradient or depth they are best suited to filter sediment of uniform particle size.
USWF only carries pleated polyester filters. The synthetic filter media is bacteria resistant so that it can be used on both treated and untreated water supplies. The pleated polyester is also highly durable meaning that you may rinse and clean the filter once it becomes clogs to extend the filter life.
This American made filter is a compatible replacement for other popular pleated sediment filters like the Watts FM-20-975, Dupont PFC3002, Hydronix SPC-25-1020, and more.

extension Comparable Part Number

	USWF 20 Micron 10"x2.5" Pleated Polyester Sediment FilterFrom $6.32 View details	801-20 Harmsco Replacement Filter CartridgeFrom $14.40 View details	ECP20-10 Pentek Replacement Filter CartridgeFrom $11.19 View details
Product Price	$6.32	$14.40	$11.19
Product SKU	USWF-PP20-1025	HARMSCO-801-20	PENTEK-ECP20-10
Filter Life (months)	6 months	—	6 months
Primary Filter Media	Pleated Polyester	Pleated Fabric	Pleated Polyester
Micron Rating (Nominal)	20	20	20
Actual Size (in)	9 3/4 inches (length) x 2 1/2 inches (outside diameter)	9 3/4 inches (length) x 2 3/4 inches (outside diameter) x 1 1/16 inches (inner diameter)	9 3/4 inches (length) x 2 5/8 inches (outside diameter)
Country of Manufacture	United States	United States	Mexico

USWF 20 Micron 10"x2.5" Pleated Polyester Sediment Filter

USWF-PP20-1025 is comparable with the following part number(s)
